Thông tin chi tiết sản phẩm:
|
| đầu: | 10*2 đầu (có tay đòn kép, đường ray kép) | kích thước PCB: | 520mm(L) * 50-450mm(w); Làn kép: 520mm(L) * 50-250mm(w) |
|---|---|---|---|
| tốc độ lắp: | Tốc độ tối ưu: 80.000 CPH | trung chuyển: | Hỗ trợ 100 chiếc máy cấp điện NXT |
| Thành phần: | 01005, 0201,0402,-5050, SOP, QFN,BGA... | Chiều cao thành phần tối đa: | 12mm |
| Kích thước: | 1400 (L) * 1890 (W) * 1550 (H) mm | Nguồn điện: | AC380V (50Hz, ba pha) 5kw |
| Loại trung chuyển: | Máy cấp điện Fuji NXT | Động cơ: | X Motor servo Motor + Y Axis Động cơ tuyến tính kép |
| Độ dày PCB: | 0,6-3,5mm | Trọng lượng tịnh: | 2500kg |
Charmhigh RS20 features dual-gantry dual linear motor drive for high-speed, high-precision large SMT production lines, PCB assembly lines, and PCBA manufacturing. Supports 01005 components.

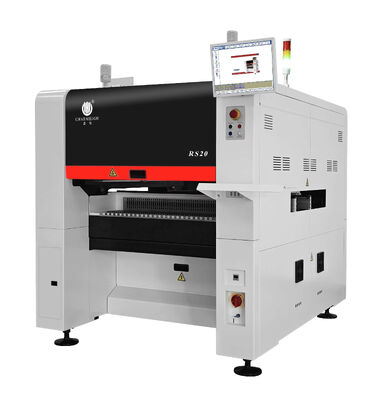

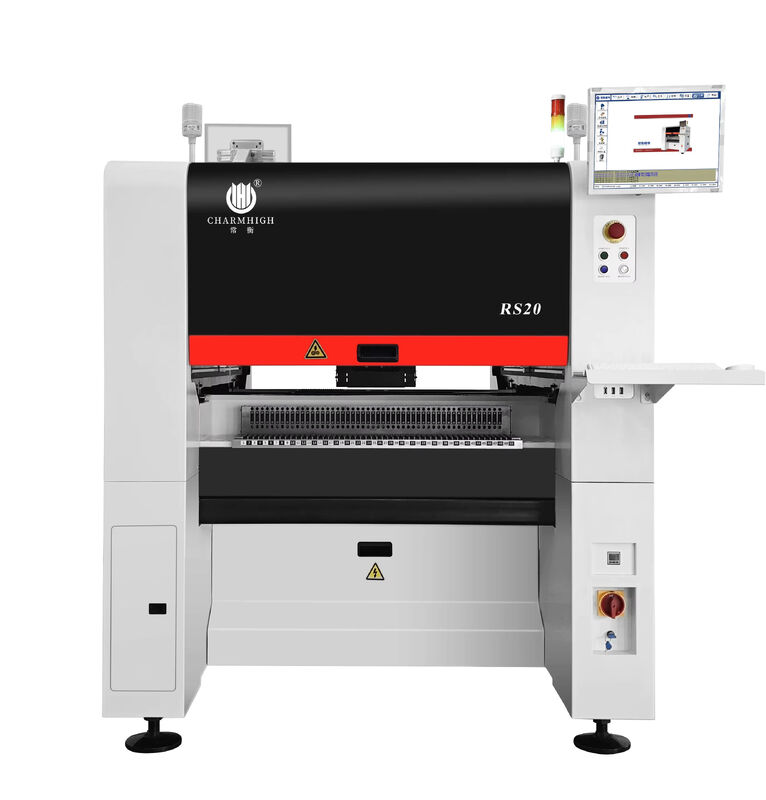

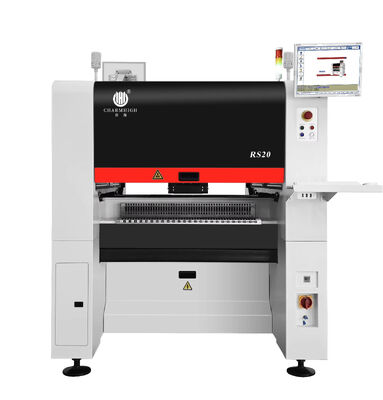

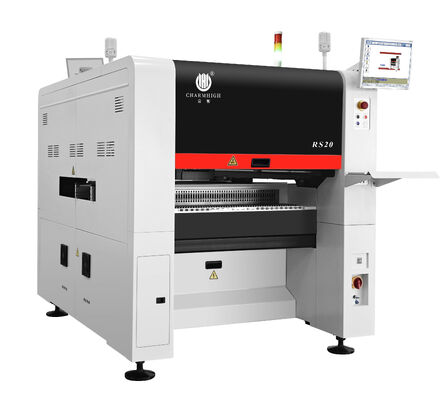

RS20 (20-head) high-precision, high-speed maglev Pick and Place Machine with dual arms and dual rails:
| Specification | Details |
|---|---|
| Dimensions | 1400mm(L)×1890mm(W)×1550mm(H) |
| Weight | 2500kg |
| Power Supply | AC380V (50Hz, three phase), 5kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in dual vacuum pump |
| Mounting Head Quantity | 10 head×1 gantry (front and rear arms) |
| Mounting Speed | 82,000 CPH (optimal) |
| Mounting Accuracy | (XY)±0.035mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | 01005/0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| Component Range | Inch size 01005 to 15mm×15mm, and larger components mounting |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | Single lane 520mm(L)×50-450mm(W); Dual lane 520mm(L)×50-250mm(W) |
| PCB Conveying | Built-in automatic transmission system |
| Nozzle Change | Automatic nozzle change (31-hole nozzle library×2 gantry) |
| Control System | Built-in industrial computer (Windows 7) with dual monitors, keyboard and mouse |
| Drive System | Y-axis double linear motor X-axis Panasonic servo motor |
| Transmission System | Y-axis THK linear guide, X-axis THK linear guide and lead screw |
| Feeding System | 100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera:10×2 (component size applicable: 15mm×15mm); Mark camera:2×2 sets |
| Item | Quantity | Item | Quantity |
|---|---|---|---|
| RS20 Pick and Place Machine | 1 | Vacuum Cotton | 20 |
| Nozzles | 40 | Aviation Plug | 2 |
| Tool box | 1 | Quick connector | 1 |
| Warranty Card | 1 | Thimble | 4 |
| User Manual | 1 | Mouse Pad | 1 |
| Test Report | 1 | Rubber Damping Pad | 4 |
| Brush | 1 | Power Cable | 1 |
| Tweezer | 1 | Keyboard | 1 |
| Inner Hexagon Spanner | 1 | Mouse | 1 |
| Open-ended Wrench | 2 | LCD | 1 |
| Lubricating oil | 1 |
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
For more information, please contact us by email. We will respond to you at the first time.
