Thông tin chi tiết sản phẩm:
|
| Heads: | 6pcs(with 19pcs nozzle auto-change position) | PCB size: | 350mm(L) * 300mm(W) |
|---|---|---|---|
| Speed: | 27800 CPH (best condition under our company) | Feeder: | Support 50pcs NXT electric feeder |
| Component: | 01005, 0201,0402,-5050, SOP, QFN,BGA to 36*36mm larger components | Max component height: | 12mm |
| Camera: | IC camera: 1pcs (36x36mm); Flying camera: 6pcs (16x16mm); MARK camera: 2pcs | PCB delivery: | 3 pieces auto delivery with rails, width can be adjusted by software |
| Dimension: | 890mm(L)x1450mm(W)x1500mm(H) | Power supply: | AC220V (50 Hz, single phase) |
| Feeder type: | Fuji NXT electric feeder | Motor: | Panasonic servo motor |
| PCB thickness: | 0.6-3.5mm | Net weight: | 900kg |
Charmhigh Module Pick and Place Machine – TC06
High-end & Compact design. Cast iron integrated molding, ultra-strong X-beam structure.
6 Heads 50 feeders, Support 01005 CPK>1.0
89cm width, suitable for most office doors and elevators!
TC06 SMT pick and place machine engineered with modular PCBA assembly in mind, this machine supports ultra-fine pitch ICs, BGA, QFN, and 0201,01005 passive components with remarkable accuracy. The compact design allows seamless integration into modern SMT lines, making it ideal for smart electronics, IoT devices, and customized module production.
Advantages of TC06:
1.Supporting CPK is an important key to choosing a pick and place machine, making the SMT production process more stable.
2.ANC: Automatic nozzle chagne, making SMT production more intelligent and more efficient.
3.High-precision 6 mounting heads: one machine can meet the mounting needs of various components with high stability
4.Cast iron base structure, the pick and place machine runs smoothly at high speed.
5.The X&Y axis driven by Panasonic servo motor ensures the long-term stability and precision of the machine.
Charmhigh YouTube channel: https://www.youtube.com/@KimiLiuCharmhigh/videos
TC06 working video, mounting 01005: https://www.youtube.com/watch?v=jmGMTdvt9FY
Charmhigh TC06 parameters:
| Dimensions |

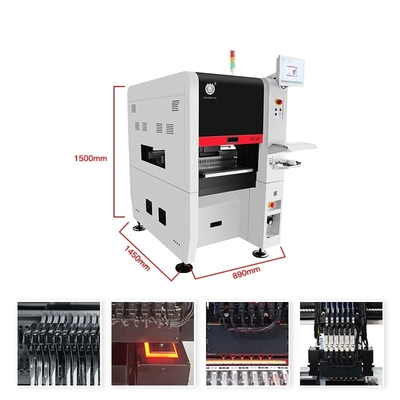

890mm(L)x1450mm(W)x1500mm(H)
|
| Weight | 900kg |
| Power Supply | AC220V (50Hz, single phase), 3kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 6 |
| Mounting Speed | 27800cph (optimal) |
| Mounting Accuracy | (xy)+30μm, CPK≥1.0 |
| Component Height | ≤12mm |
|
Component Type & Component Range |
-Resistor capacitor exclusion, cylindrical diode, aluminum -Inch size 01005 to 36*36mm, and larger components mounting |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x300mm(W) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support device |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System |
X&Y axis driven by Panasonic servo motors |
| Transmission System | Grounding screws + Linear guides |

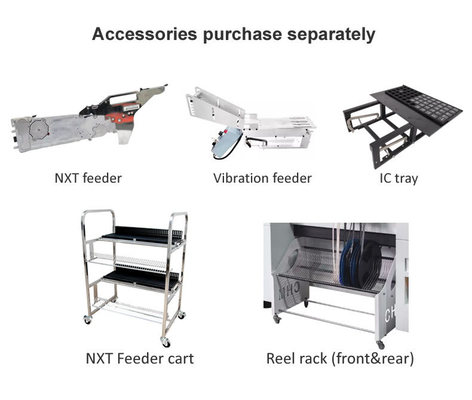

| Feeding System | 50 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera x 6 (component size applicable: 16mmx16mm); IC camera x 1 (component size applicable: 36mmx36mm); Mark camera x 2 |

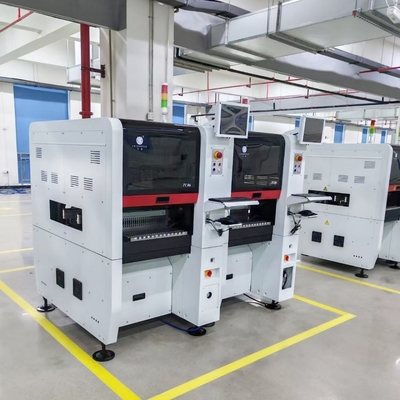

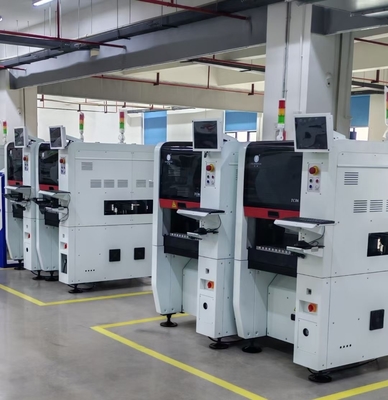

Two units Charmhigh TC06 working together, 27800 CPH *2 = 55600 CPH
This pick and place machine is compact and adorable, yet incredibly powerful.
Charmhigh TC06: CPK detection passed, TC06: CPK≥1.0, Support 01005:
Mounting range:

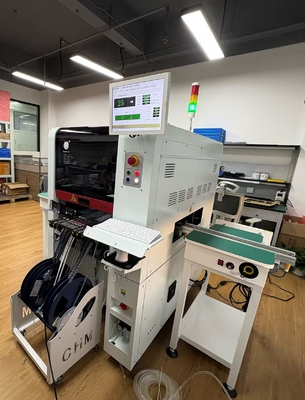

Customer site:
TC06 strong packing:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi Liu: Mob/ WhatsApp: +8613510675756
E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube: https://www.youtube.com/@KimiLiuCharmhigh/videos
If you want to know more information, please contact us by E-mail. We will response you at the first time.
Why choose us?
1.CHARMHIGH serves customers in over 30 countries worldwide, earning their trust through reliable performance and innovation.
2.With deep expertise in SMT manufacturing, we specialize in designing and delivering fully customized SMT solutions—from concept to production.
3.Our team provides expert technical services and responsive support to ensure seamless operations and maximum efficiency.
4.We have extensive experience in diagnosing and resolving SMT challenges, offering optimized solutions for every production need.
5.By choosing CHARMHIGH, you gain a dependable long-term partner committed to your success in SMT manufacturing.
Value-added Services:
1.Complimentary Offline Programming Software (USD 2,083 value) - Streamline your setup and significantly reduce programming time
2.Free Offline Loading Table Included (USD 277 value) - Ready-to-use equipment for immediate productivity
3.Dedicated Online Operational Guidance - Expert support ensures smooth implementation and worry-free operation
